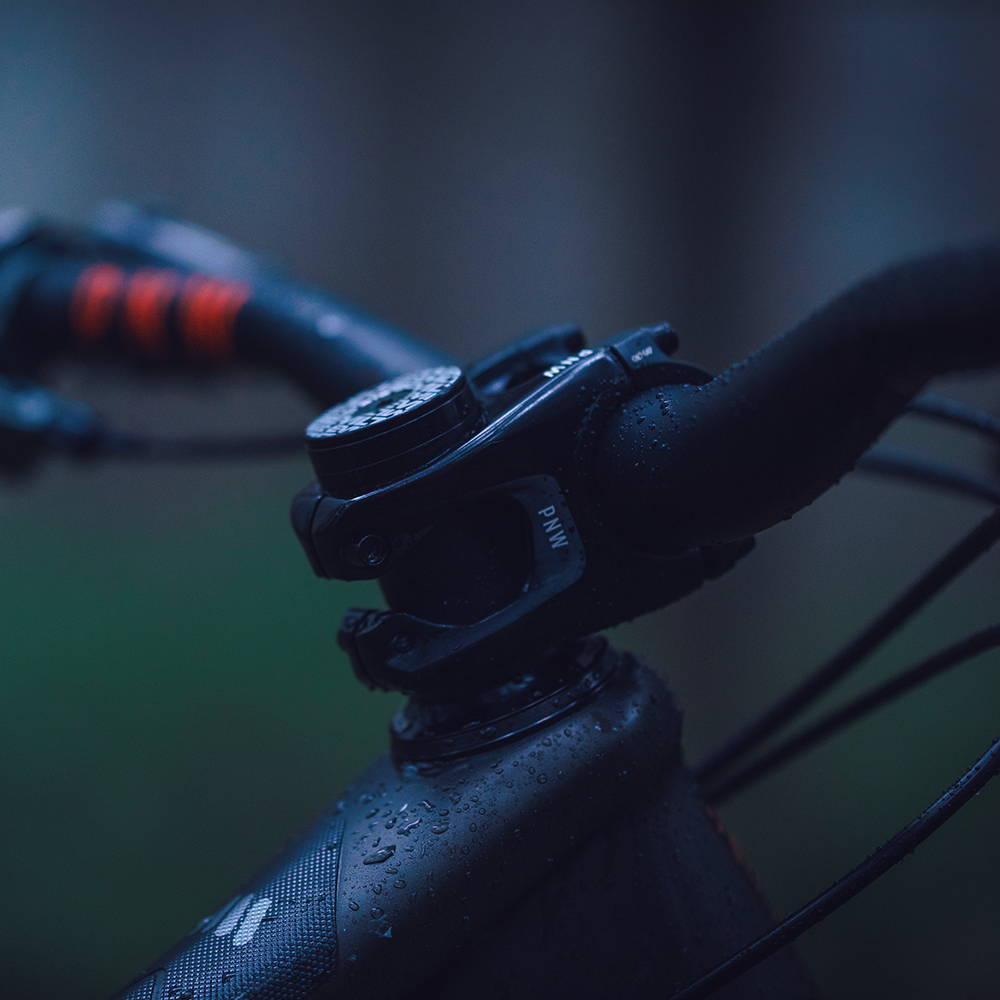

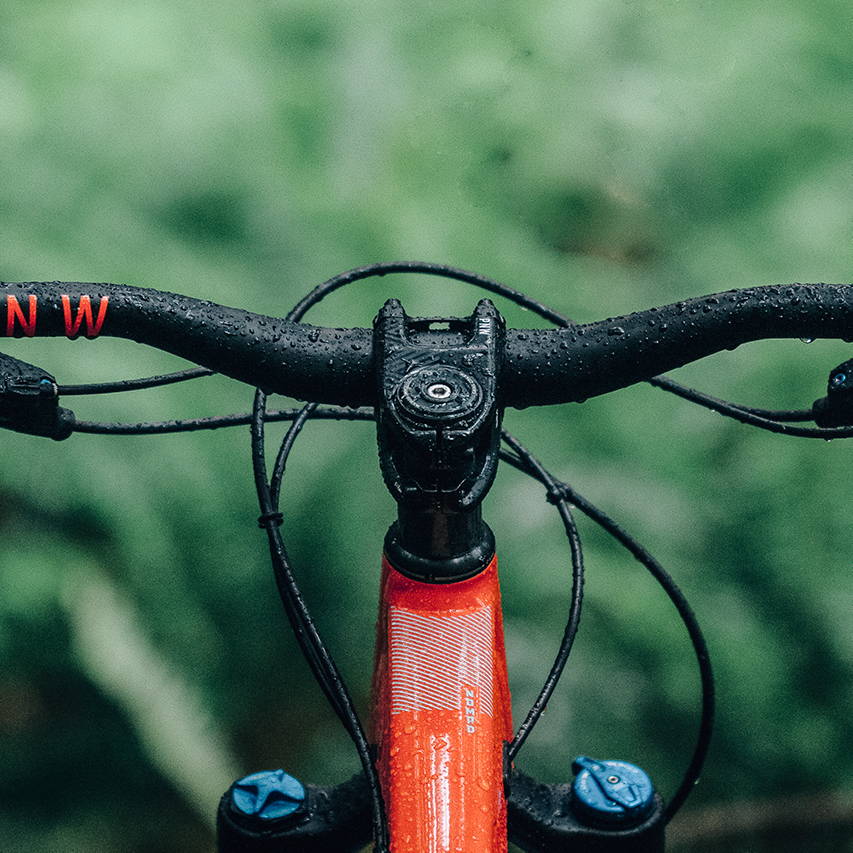

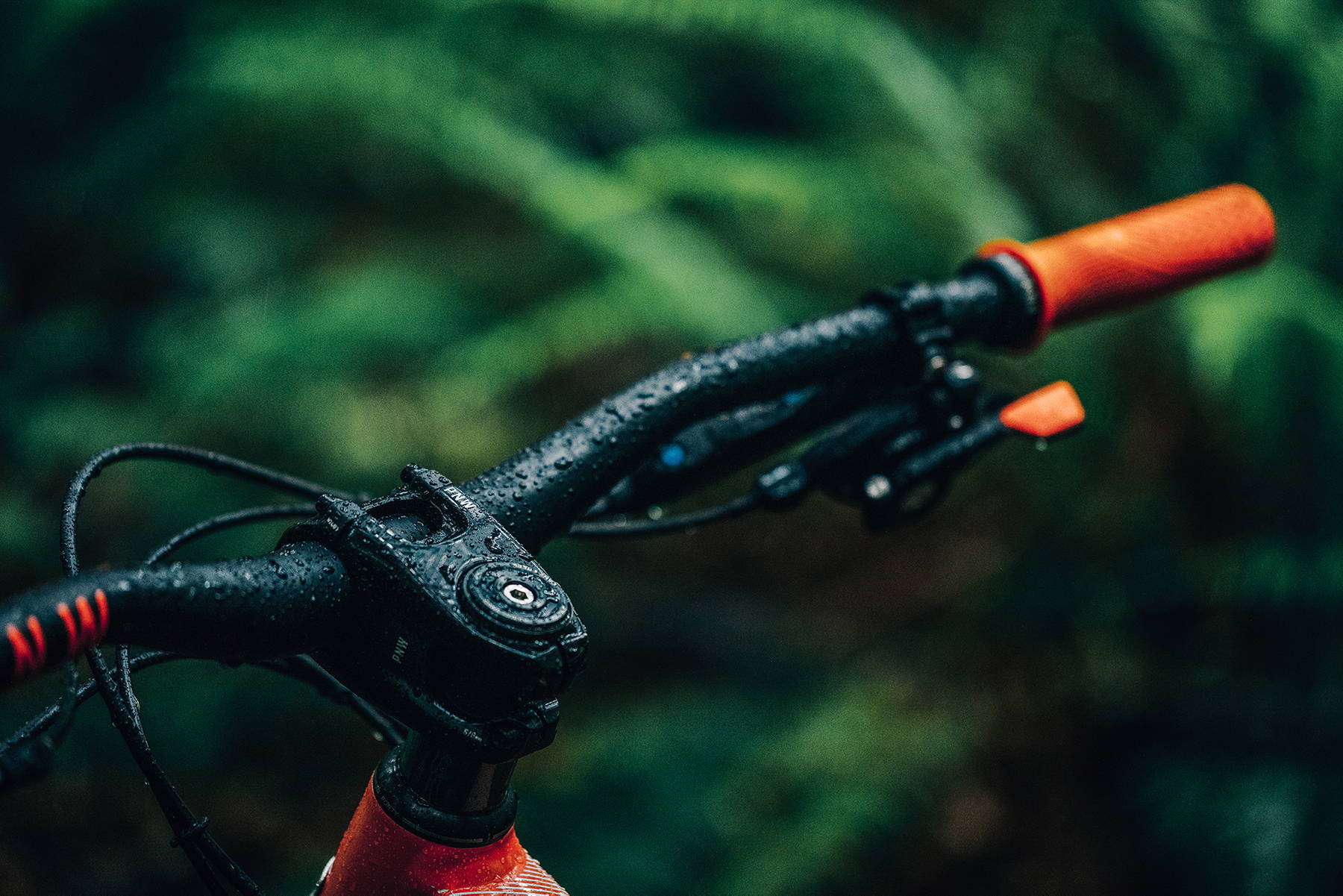

The redesigned Range Stem is lightweight, tech ready and sized for the modern rider.
complete your cockpit
go go gadget
Get that footie or take a nighttime pedal. Each Range Stem comes with a detachable mount compatible with many headlamp options, GoPros and other POV cameras.
sizing stats
We sized this stem at 40mm and 50mm to play nicely with modern mountain bike geos.
Lifetime Warranty
We've always got
your back
Fast Shipping Options
Get your parts for the
weekend ride
Unparalleled Service
Seriously, we're here
for you
Pacific NW Approved
All Season reliability, tested in the mountains
How Does Travel Adjust work?
Our travel adjust system allows for a total of 30mm travel reduction in 5mm increments. If you were riding that line between travel sizes you can now fine-tune the perfect fit by following the easy directions below:
- Begin by lowering your dropper at or below the desired travel length (just make sure it’s not fully extended!)
- Unthread the midcap with your hand and slide it up to reveal the white DU Bushing.
- You’ll see negative numbers with corresponding notches machined into the post (each # represents decreasing travel.
- Slide the DU bushing up and rotate it to align the black arrow with the amount of travel you would like to reduce, then seat the arrow into the machined groove. (Make sure it’s fit securely into these notches!)
- After pushing the DU Bushing back down, lower the midcap and hand tighten (no need to go overboard!) and ride off into the sunset with the perfect travel for you.
How Does Travel Adjust work?
Our travel adjust system allows for a total of 30mm travel reduction in 5mm increments. If you were riding that line between travel sizes you can now fine-tune the perfect fit by following the easy directions below:
- Begin by lowering your dropper at or below the desired travel length (just make sure it’s not fully extended!)
- Unthread the midcap with your hand and slide it up to reveal the white DU Bushing.
- You’ll see negative numbers with corresponding notches machined into the post (each # represents decreasing travel.
- Slide the DU bushing up and rotate it to align the black arrow with the amount of travel you would like to reduce, then seat the arrow into the machined groove. (Make sure it’s fit securely into these notches!)
- After pushing the DU Bushing back down, lower the midcap and hand tighten (no need to go overboard!) and ride off into the sunset with the perfect travel for you.
Specs: RANGE stem
length
40mm, 50mm
clamp
31.8mm
weight
40mm - 174g / 50mm - 210g
COMPATIBILITY
- Fits 1-1/8" steerer tube
FAQ
Is there an option without the GoPro/light mount?
We have the one version of the Range stem with the mount, as it is easily removable. This way, you have options!
What is the rise?
The Range stem has a 0 degree rise.
Which length is best for me?
Stem length is a heavily debated topic, and really comes down to personal preference. The key is to feel comfortable in the cockpit. Modern bike geometry tends toward shorter stems, so we offer the Range in a 40mm and 50mm option. If you want a bit more weight over the bars to lengthen out that cockpit, and help on climbs, go with that 50mm. If you like a shorter cockpit, and to pick up that front up a bit more easily, go with the 40mm.
Warranty
PNW Lifetime Warranty
Do we have your back? Of course. If anything goes wrong, we're here to do everything we can to ensure you're taken care of.
Reviews
Wanted a shorter stem to improve handling. It looks great and functions well
Brenton B. Verified Customer
Well built and being able to mount a headlamp without extra brackets to clutter things up is awesome.
Steven S. Verified Customer
As is the story with everything else PNW puts out, this stem is as good as others at twice the price.
Matthew W. Verified Customer
